After welch plugs change & soda flush about 8 weeks ago, 4 days ago i noticed cooling fan taking too long to turn off. started to look from electrical issue pulled out fan relay insert was ok relay had caramel brown legs appears bad so changed to new item cost Rs. 300
Jul '22Jul '22
Changing relay did worked but the temp needle started bit erratic behavior so started to investigate deeper, checked for hose clips. Topped up expansion bottle couple of times and it turned out to be overflow from bottle. checked for radiator cap and it was new had not issues earlier. I was seriously confused for whats' wrong why temp needle move bit up in crawling traffic.

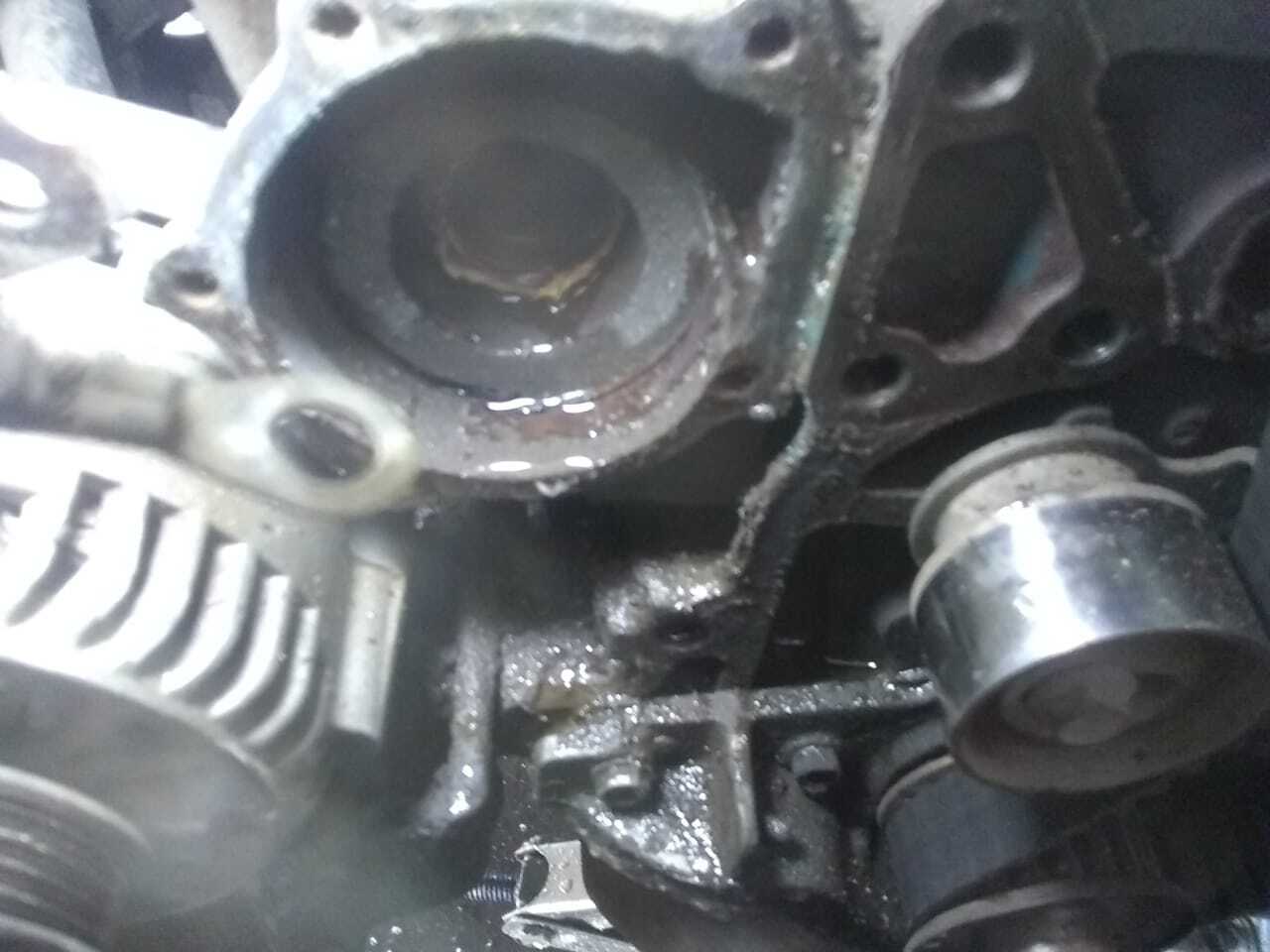

finally i did the idle run test at home in morning , culprit was located as pump leaking causing cavitation in system and expansion tank throwing up.

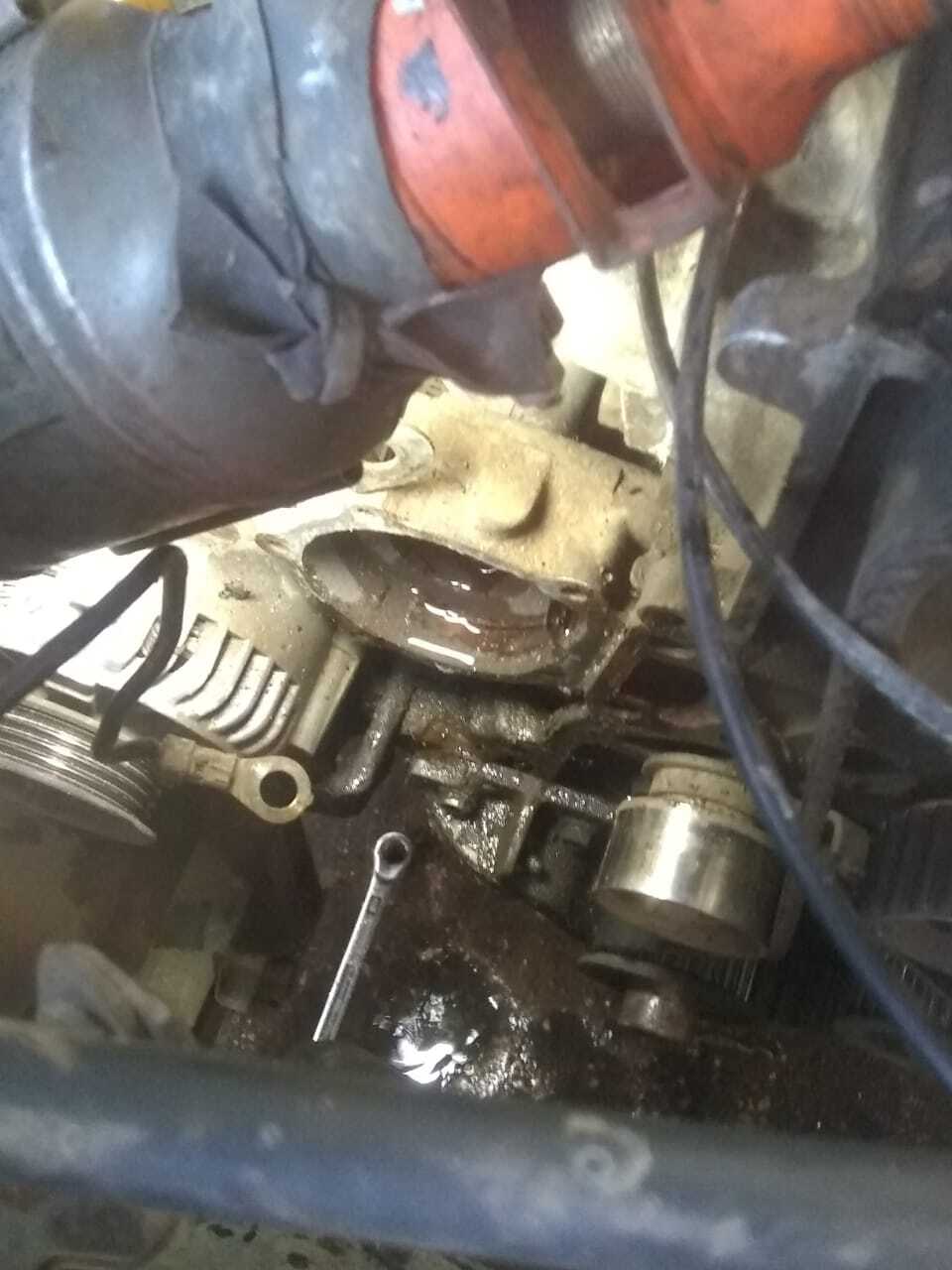

here is pictorial of situation.

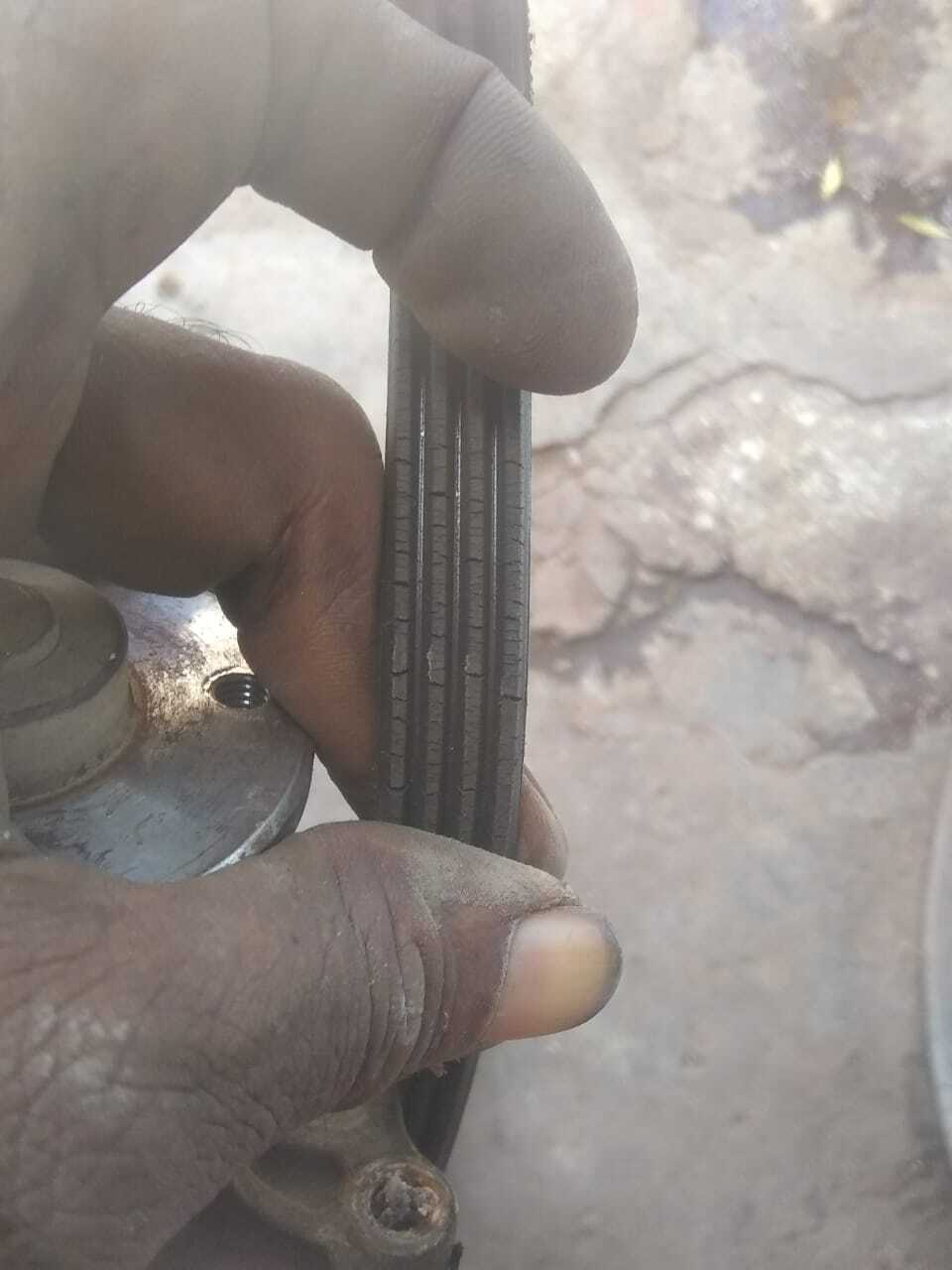

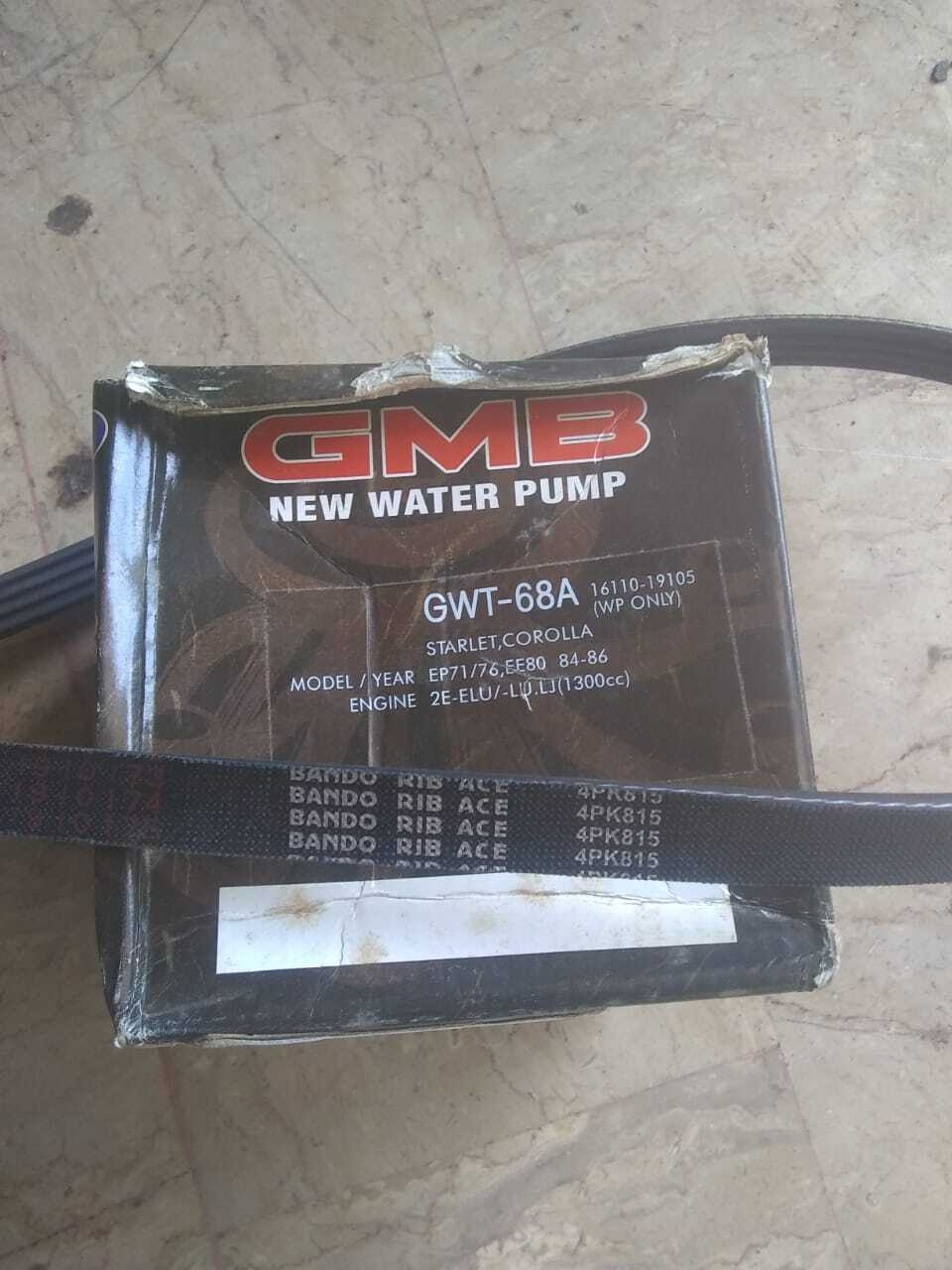

BELT was bad as well

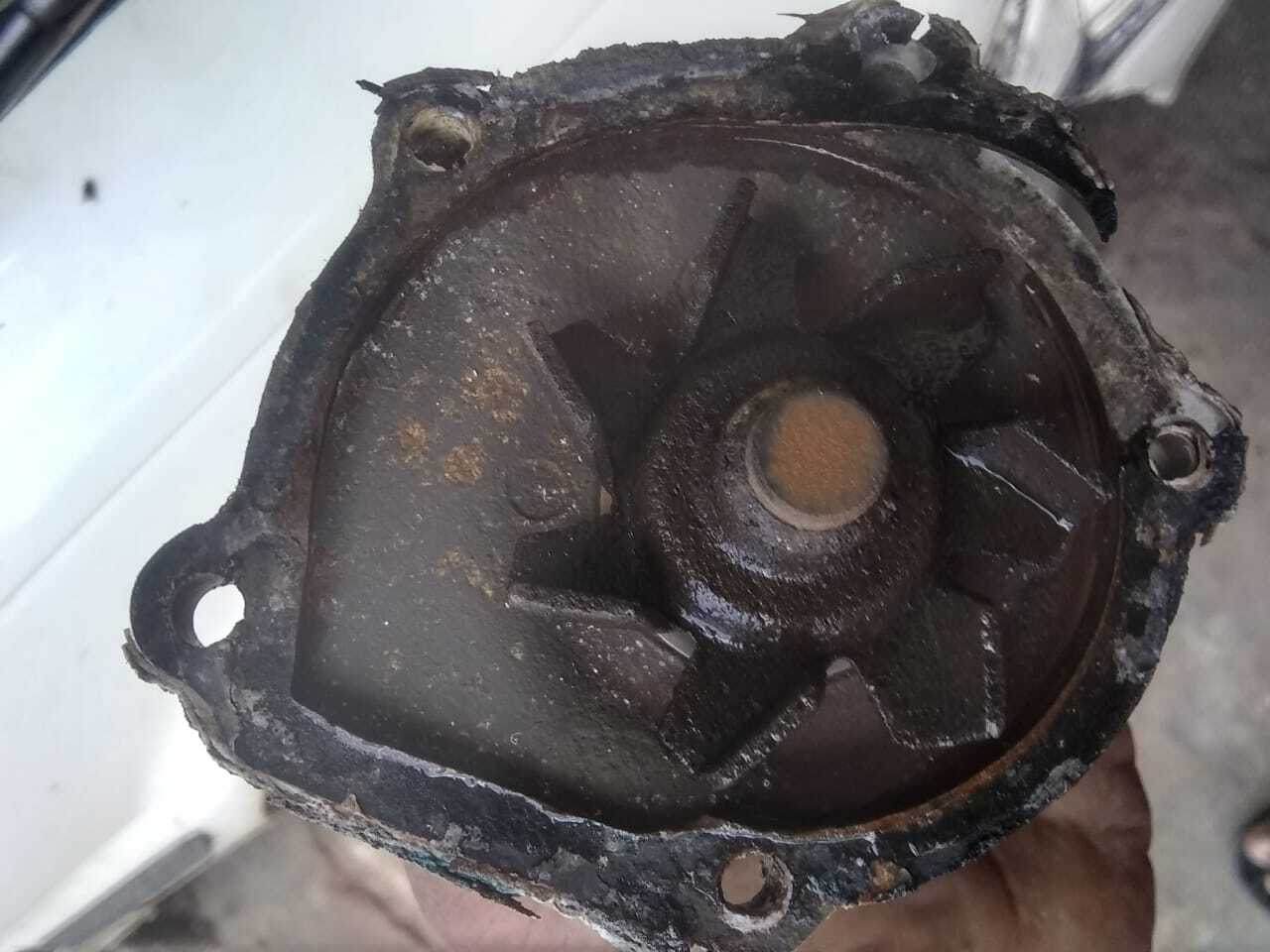

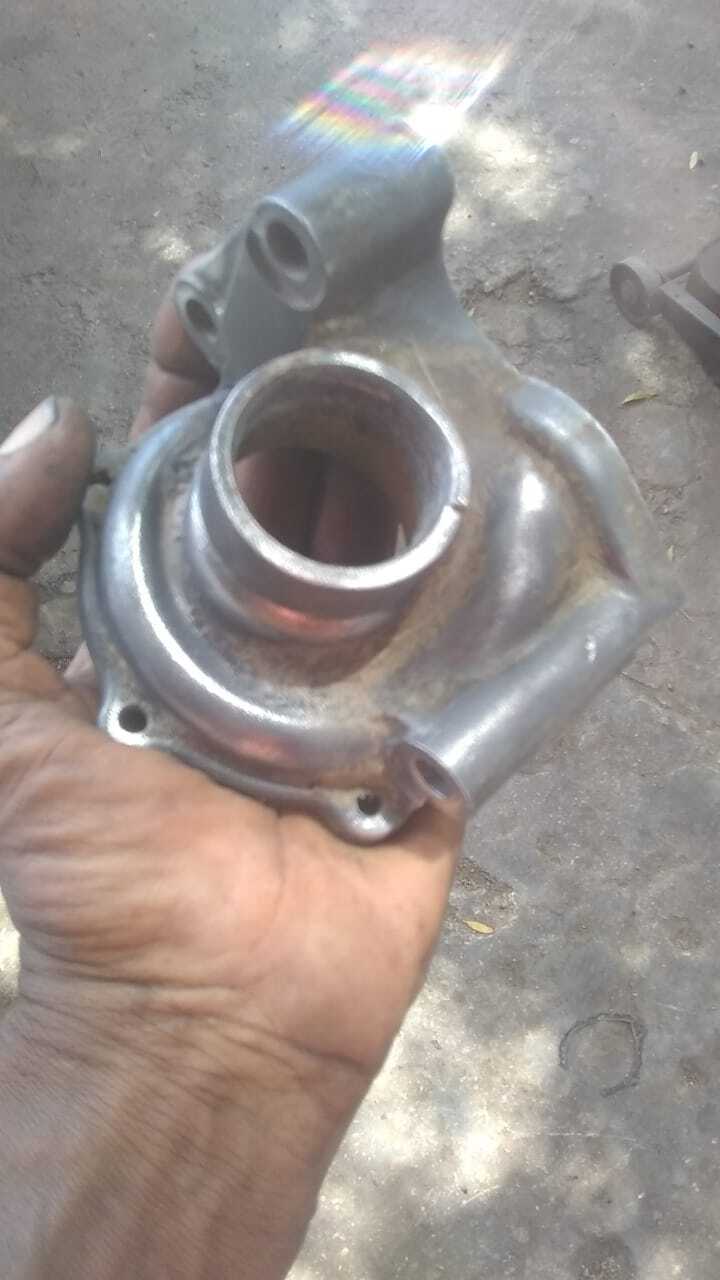

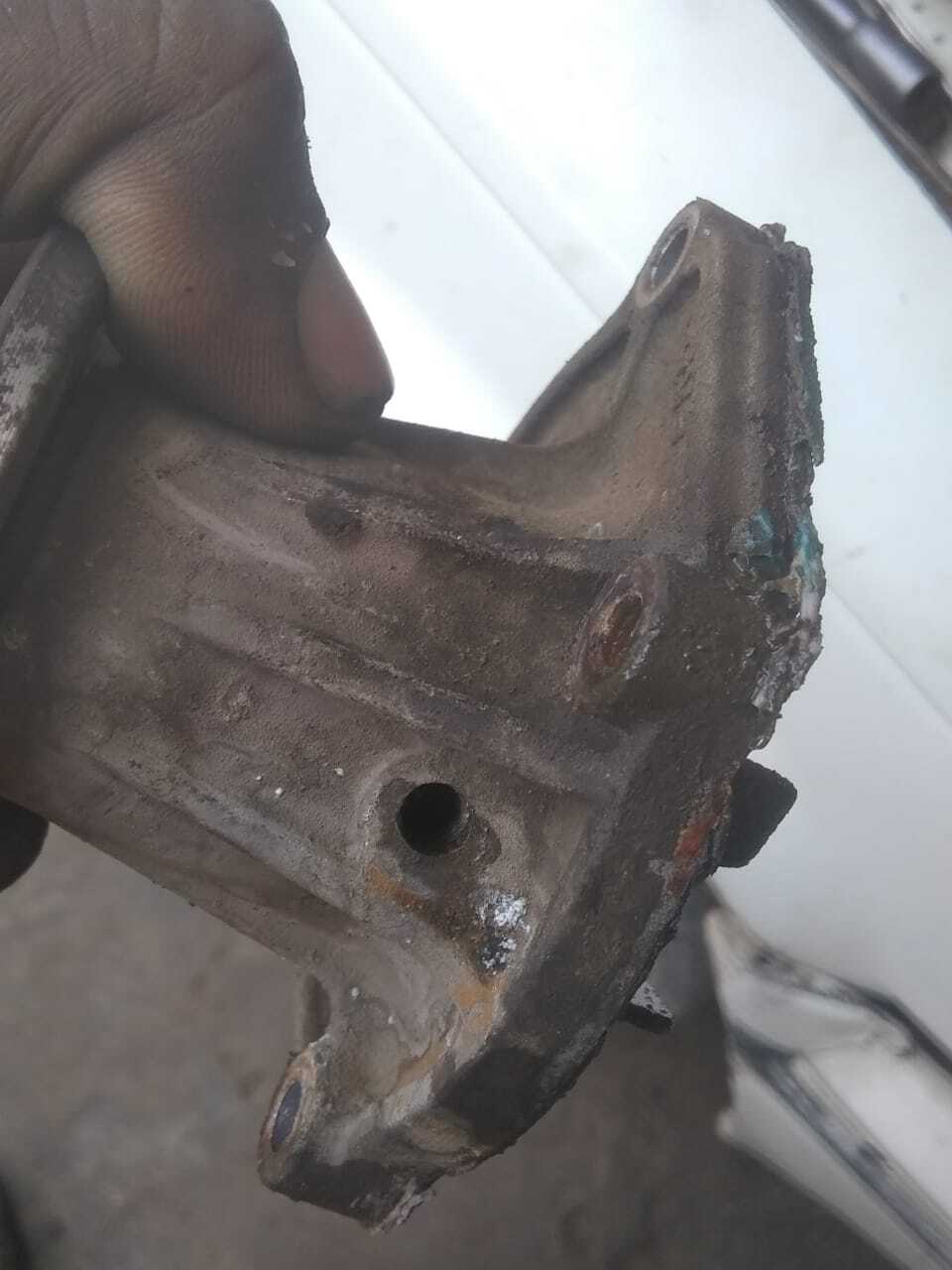

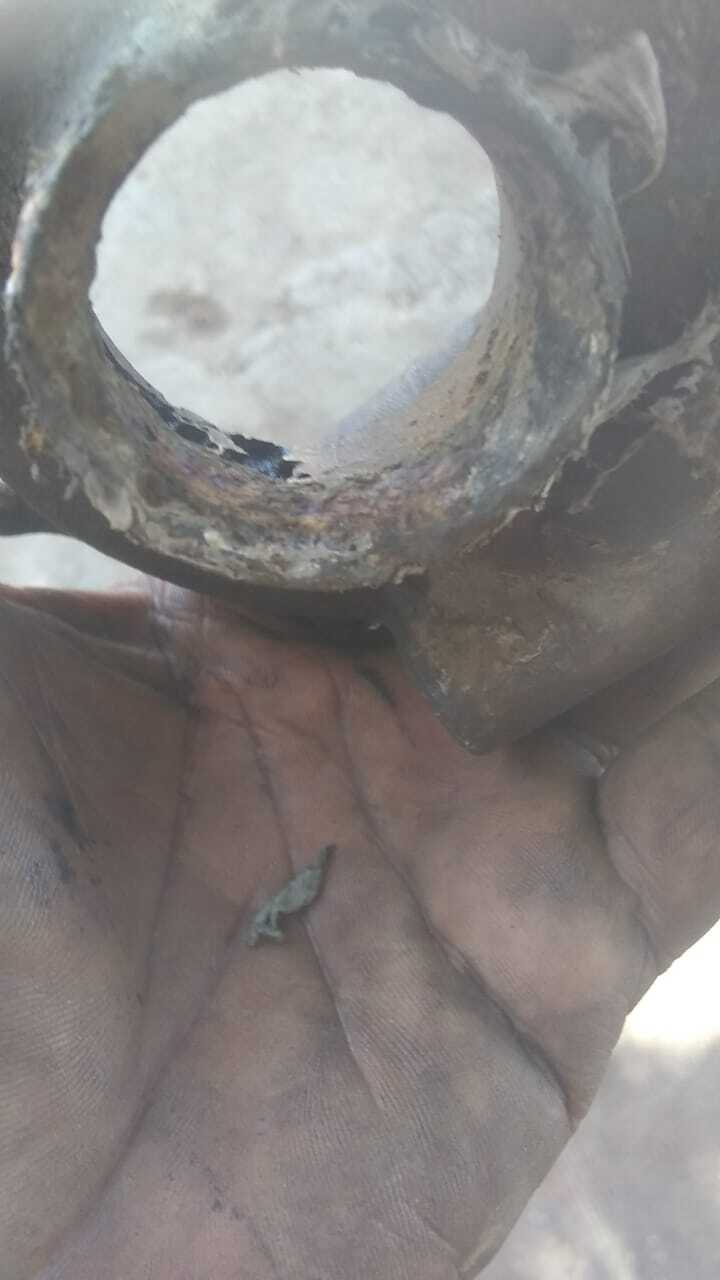

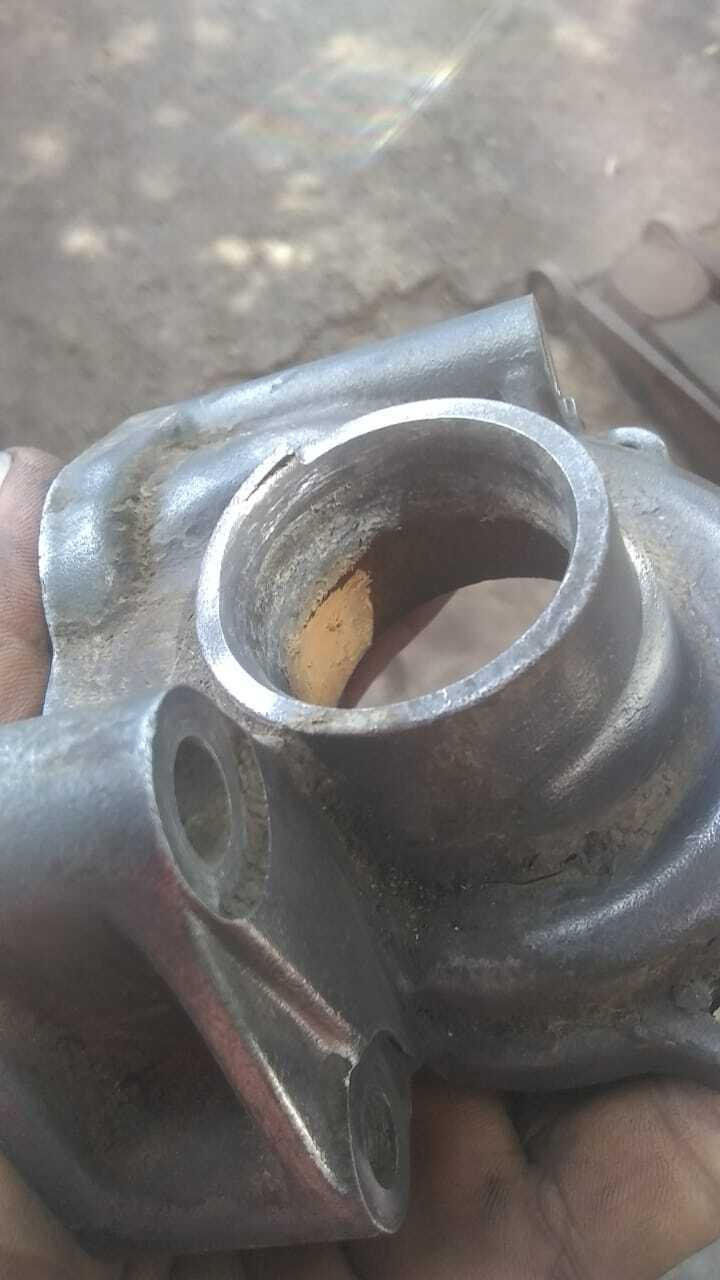

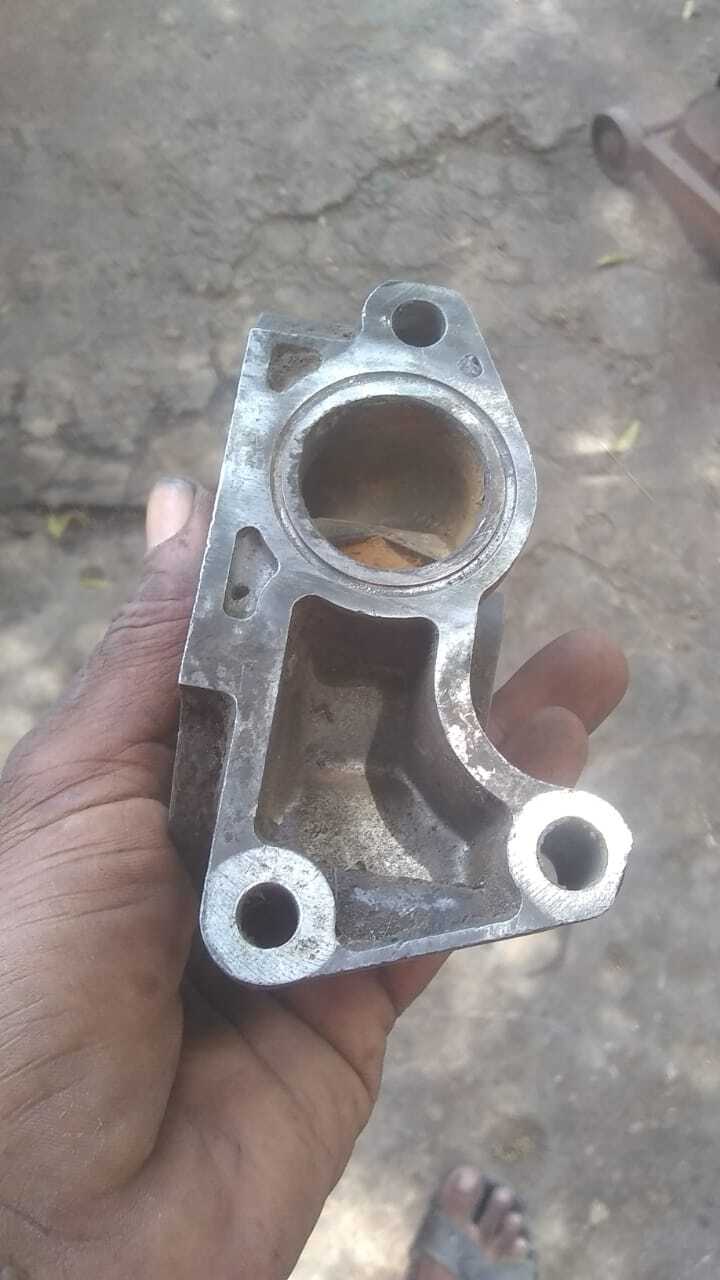

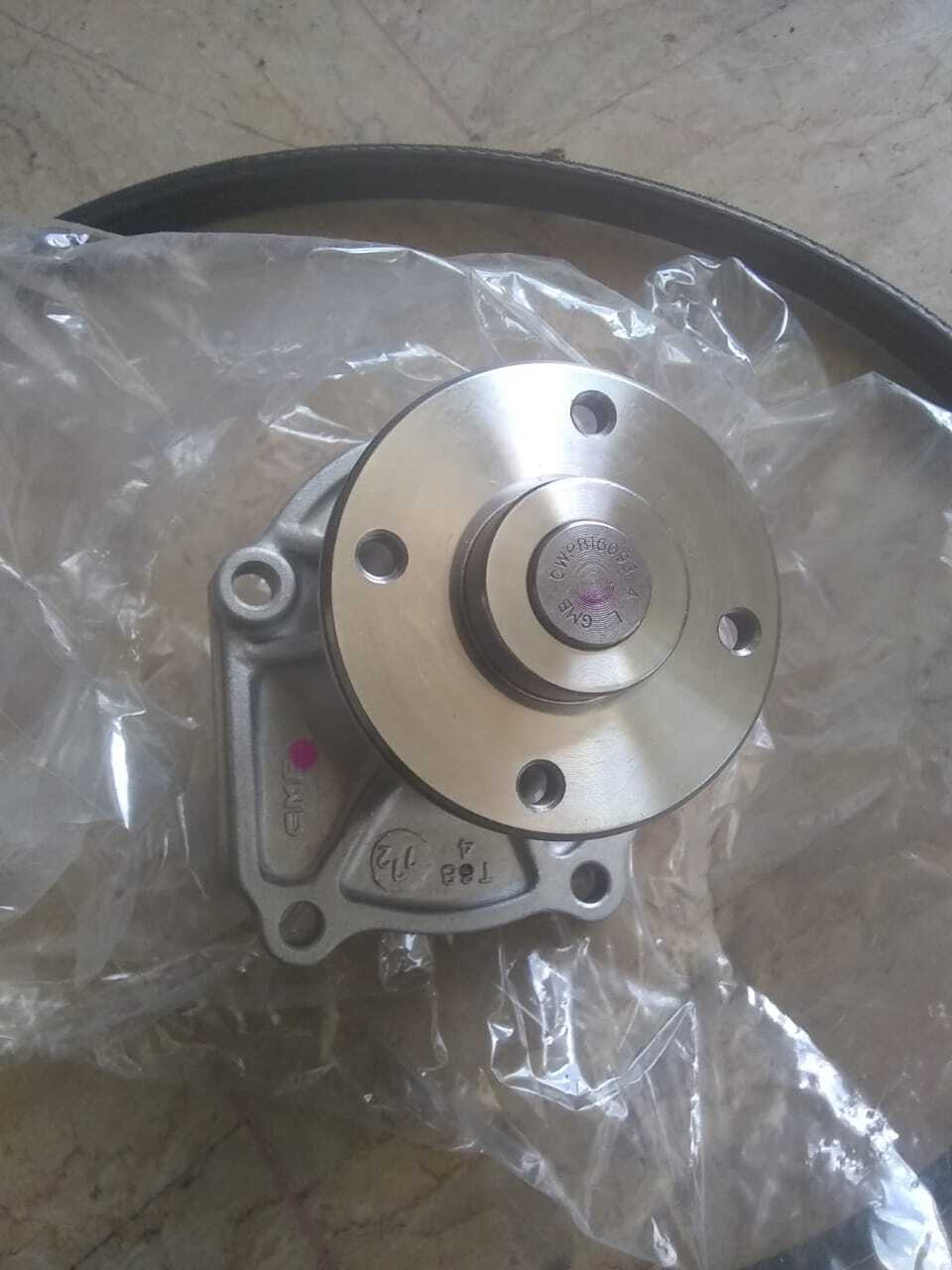

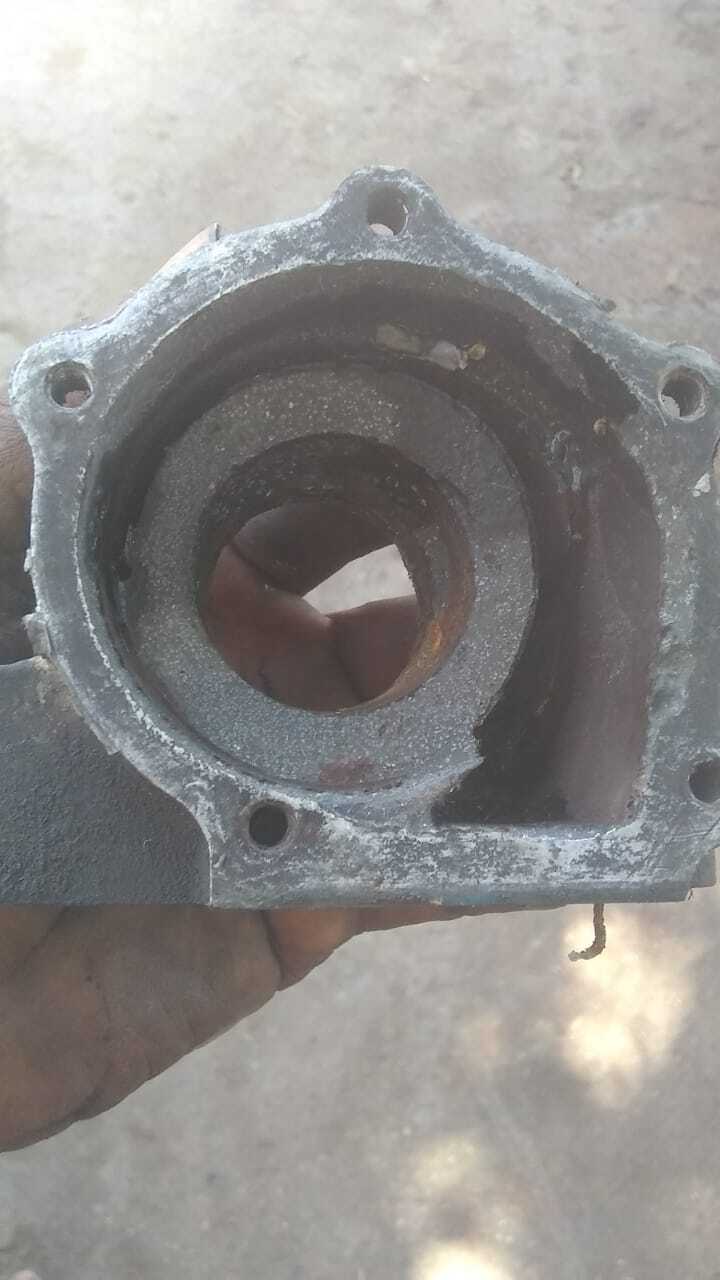

pump impeller was not so bad, but the flange housing was at end of life.

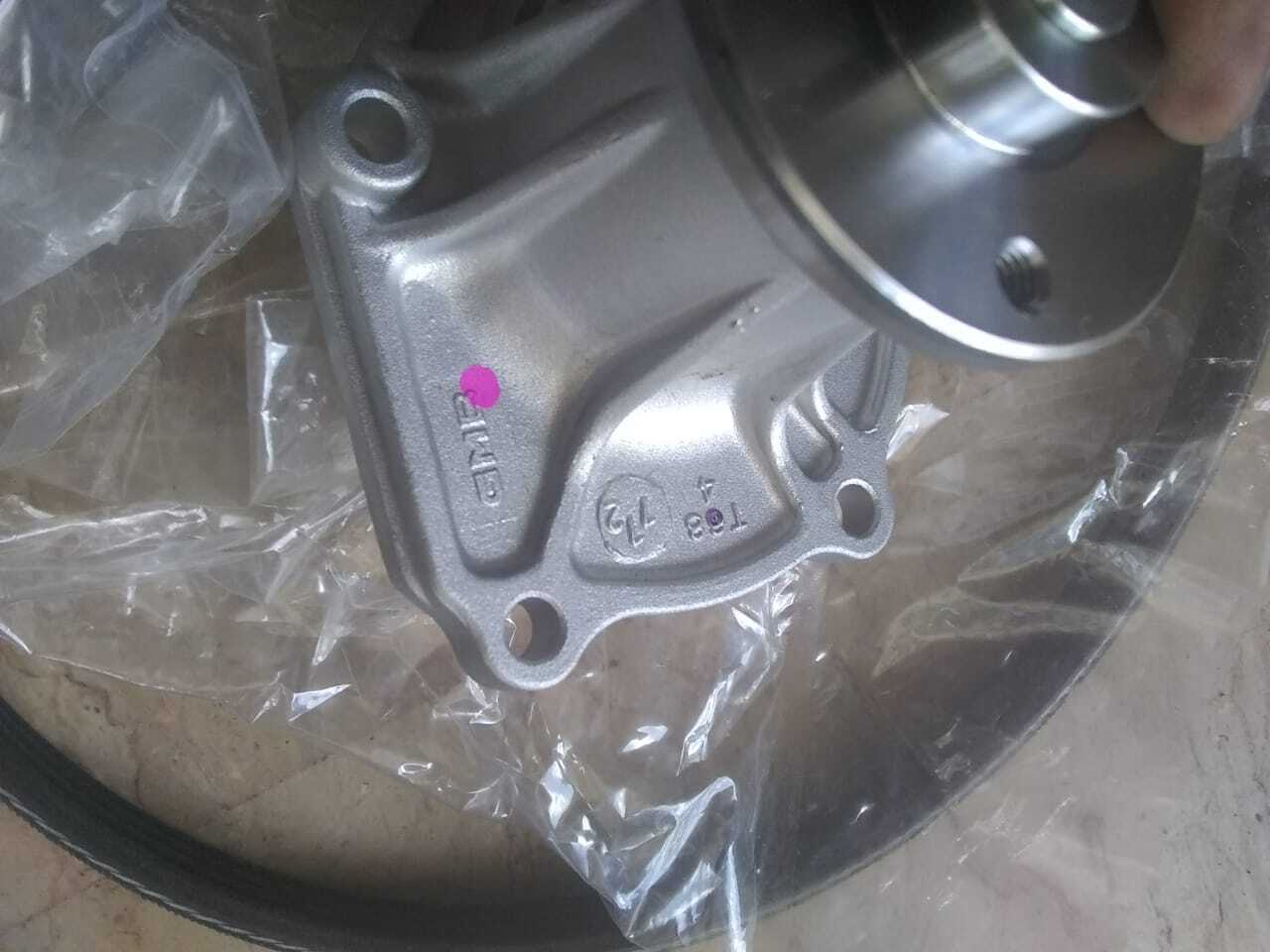

work done at Karachi by Jamil Autos Irshad Ahmed 0300 223 7538. time taken 4 hours. (including visit to market for parts. Job cost (Parts & labor) Rs. 10,000
Coolant will go into system on saturday.
@afarooqi @nnabeel @ser_gtr @hassan1991 @margallar @dani_kk @brownrose78 @rajaatta @babarhyd
From which salvage yard in Karachi, you got this item?
Was pre-diluted ready-mix coolant present at time of such end of Life water pump and Flynge?
@ser_gtr 167000+ kms
@brownrose78 streets behind plaza is mini shershah since COVID lock down started
coolant will be poured over weekend. (4 liters of caltex +1 liter filtered water)
